Metal Brackets

Metal Brackets are made from galvanized sheet steel and are designed to fit over Quad-Lock Panels. The brackets have holes that match the panels’ foam interlock knobs and slots that allow the ties and tie flanges to be inserted once the bracket has been placed over the panels.

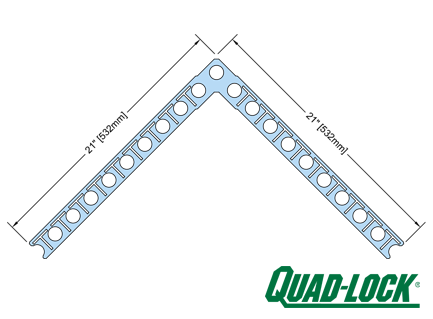

Outside Corner Bracket

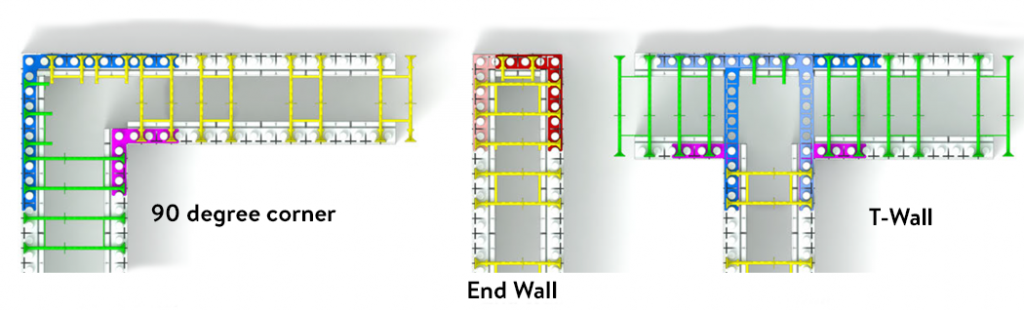

The Outside Corner Brackets are used on every row of the outside corner panels (with the exception of the top row) and as reinforcement for the back side of T-walls.

more info

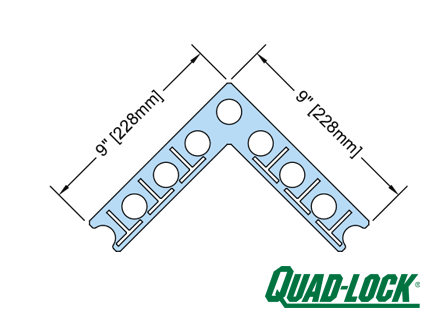

Inside Corner Bracket

The Outside Corner Brackets are used on every row of the inside corner panels (with the exception of the top row) for 90 degree corners and on the inside corners of T-walls.

more info

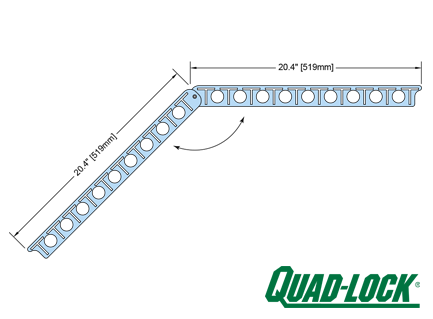

Angle Bracket

Angle Brackets are hinged brackets that allow wall angles of almost any degree to be easily formed and braced. Angle Brackets are only needed on the outside of the angle wall.

more info

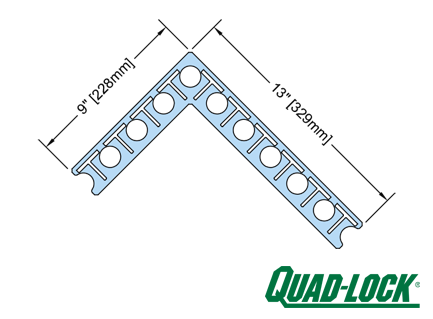

End Cap Bracket

(Special Order Item)

End Cap Brackets help to form insulated wall end caps with short panel pieces, replacing lumber formwork and bracing.

more info

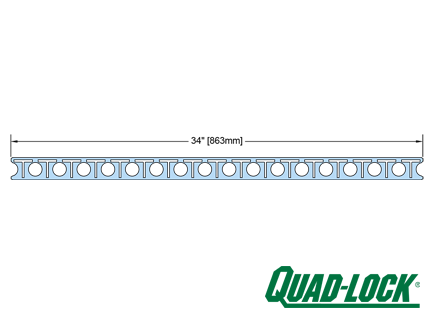

Straight Bracket

(Special Order Item)

Straight Brackets are used at four-way intersections for added support.
